Continuous Feed Dual Unwind Labelers



Product Description

The CFUD is equipped with low label and end of web alarms with a strobe light indicator as standard features. The dual manual clamping system on the splicing table maximizes the use of labeling material.

Coupling the Continuous Feed Dual Unwind unit with either the CTM Series 360a or CTM Series 3600a-PA Printer applicator minimizes downtime associated with label roll changeover. Offering dual 20” unwind assemblies, welded carbon steel tubular frame, 4” locking casters, powered nip roller drive assembly, collection bin for staging of label web as well as the PLC control to monitor system functions should rank this unit as a “must have.”

Call and speak to one of our Sales Staff at 330-332-1800 to receive more information regarding the CFUD – We will answer any questions you may have with regard to supplying you with the optimal solution to your labeling applicator need.

Standard Features
PLC Controlled
Dancer Arm Tension Control
PLC Enhanced Braking System
Variable Speed Dispense Rate
Low Label Alarm
End of Web Alarm
Dual Manual Clamping System on Splicing Table

Specifications



Electrical:

120 Volts AC 10 Amps 50/60 Hertz






Speed:

Up to 3,000 linear inches per minute (LIPM)


Roll Capacity:

Dual Supply Rolls 20″ OD, 3″ ID (optional core adapters available) Media


Dimensions:

7.5″ wide, maximum web width


Electronics:

PLC Controlled Dimensions: 56.5″ h, 47″ w, 27″ d


Weight:

456 lbs.

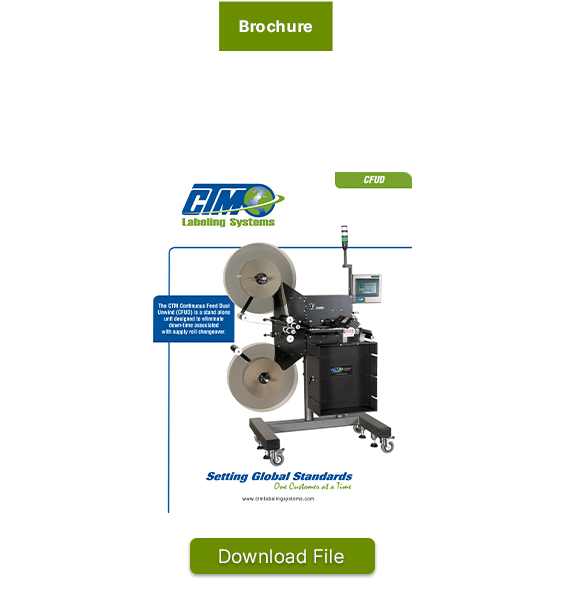

Brochure

Download File
